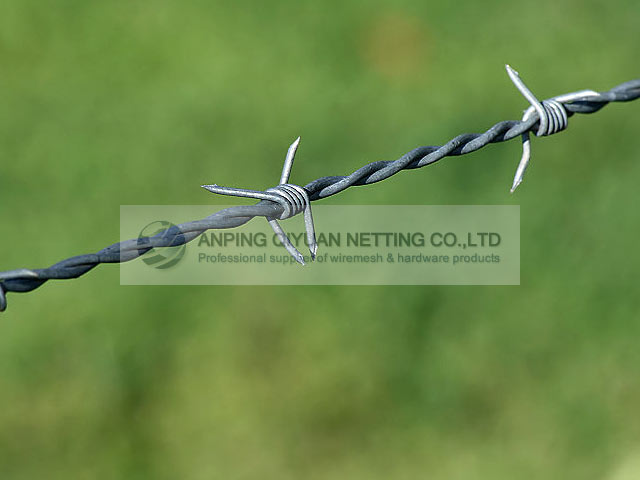

Barbed wire makes common security toppings. As the most common and well-known fence -barbed wire, we offer three twisting patterns. We offer normally barbed wire in galvanized finish or plastic coated finishes for a locations requiring additional anti-climb capability at minimal extra cost.
Specification
| Material: | Electro galvanized wire, hot dipped galvanized wire, PVC coated wire, stainless steel wire |
| Wire Gauge: | 1.0mm ~ 4.0mm(BWG8# ~ 20#) |
| Barb Distance: | 75mm ~ 150mm |
| Barb Length: | 15mm ~ 30mm |
| Packing: | In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C cloth or hessian cloth. |
Information

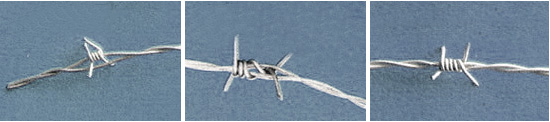

Barbed wire has 3 different types of weaving: single twist barbed wire, traditional twist barbed wire and double twist barbed wire.
PVC coated barbed wire can enhance corrosion resistance further. Because of the special nature of PVC, it will not change color and fall off even if long-term under sun and rain. Colors can be customized freely according to customer requirements.
| Gauge of Strand and Barb in B.W.G. |
Approximate Length per kilogram in Meter | |||
| Barbs Spacing 3" | 4" | 5" | 6" | |
| 12x12 | 6.0617 | 6.7590 | 7.2700 | 7.6376 |
| 12x14 | 7.3335 | 7.9051 | 8.3015 | 8.5741 |
| 12-1/2x12-1/2 | 6.9223 | 7.7190 | 8.3022 | 8.7221 |
| 12-1/2x14 | 8.1096 | 8.814 | 9.2242 | 9.5620 |
| 13x13 | 7.9808 | 8.899 | 9.5721 | 10.0553 |
| 13x14 | 8.8448 | 9.6899 | 10.2923 | 10.7146 |
| 13-1/2x14 | 9.6079 | 10.6134 | 11.4705 | 11.8553 |
| 14x14 | 10.4569 | 11.6590 | 12.5423 | 13.1752 |
| 14-1/2x14-1/2 | 11.9875 | 13.3671 | 14.3781 | 15.1034 |
| 15x15 | 13.8927 | 15.4942 | 16.6666 | 17.5070 |
| 15-1/2x15-1/2 | 15.3491 | 17.1144 | 18.4060 | 19.3386 |
