Common Iron Nail



Specification

Material: Q195,Q215,Q235
Properties: Toughness curvature ≥ 90 °, the surface after polishing or galvanized, has good corrosion resistance, rust resistance.
Packing: Packing in 25kg per carton or at customer's request.

Information

The following specifications are common nails, they can also be customized the molds of other styles according to your request.
Galvanized Square Boat Nails

Galvanized Square Boat Nails

Nail Length Gauge No. Nail Length Gauge No.
1" 14BWG 2" 12BWG
15BWG 2-1/2" 10BWG
16BWG 3" 8BWG
1-1/4" 14BWG 3-1/2" 7BWG
1-1/2" 13BWG 4" 6BWG
14BWG 5" 5BWG
1-3/4" 13BWG 6" 4BWG

Roofing Nails

Roofing Iron Nails

Nail Length(Inch) Number/lb
10Ga15/32-Inch Head 11Ga 1/16-Inch Head 12Ga3/8-Inch Head
3/4 ... 318 ...
7/8 249 299 388
1 220 271 360
11/4 176 212 282
11/2 147 189 237
13/4 123 157 211
2 ... 140 ...

Iron Brad Nails

Iron Brad Nails

Nail Length Gauge No. Nail Length Gauge No.
3/4" 17BWG 1-1/2" 14BWG
18BWG 15BWG
1" 16BWG 2" 14BWG
17BWG 2-1/2" 13BWG
1-1/4" 15BWG

Fine Iron Nails

Fine Iron Nails

Size Nail Length (inch) Gauge No. Dia. of Nail Head (inch) Number per lb
3d(a) 1-1/8 15 11/64 757
3d(b) 1-1/8 15 5/32 765
3d 1-1/8 16 5/32 938
(Extra Fine)

Concrete Steel Nails

Concrete Steel Nails

Electro-Galvanized Blue-Finished
Nail Length Gauge No. pcs per lb Nail Length Shank Dia.
1" 12BWG 355 20mm 2mm
9BWG 182 25mm 2mm
1-1/4" 12BWG 244 25mm 2.5mm
9BWG 145 30mm 3mm
1-1/2" 12BWG 244 40mm 3mm
9BWG 123 50mm 3mm
2" 12BWG 184 60mm 3.4mm
9BWG 96 70mm 3.4mm
2-1/2" 8BWG 64 80mm 3.4mm
3" 7BWG 45 80mm 3.4mm
3-1/2" 40 100mm 4.2mm
4" 33

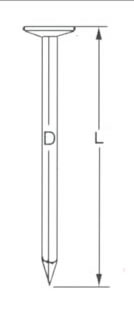

Common Round Iron Nails

Common Round Iron Nails

L D L D
Inches M/M BWG Inches M/M BWG
3/8 9.525 20 2 50.800 12/11
1/2 12.700 20/19/18 2-1/2 63.499 11/10
5/8 15.875 19/18 3 76.200 10/8
3/4 19.050 18/17 3-1/2 88.900 8/7
7/8 22.225 18/17 4 101.600 8/6
1 25.400 16 4-1/2 114.300 7/6/5
1-1/4 31.749 15/14 5 127.000 6/5
1-1/2 38.099 14 6 152.400 6/5/4
1-3/4 44.440 13 7 177.800 5/4

Shoot Nails

Shoot Nails

Nail Length Shank Dia. Nail Length Shank Dia.
32mm 2.3mm 50mm 3.2mm
35mm 2.6mm 55mm 3.5mm
40mm 2.8mm 60mm 4.0mm
45mm 3.0mm 62mm 4.2mm

Flat Head Panel Pins

Flat Head Panel Pins

Pin Length Gauge No. Pin Length Gauge No.
1/2" 17BWG 3/4" 17BWG
19BWG 19BWG
20BWG 1" 17BWG
5/8" 17BWG
