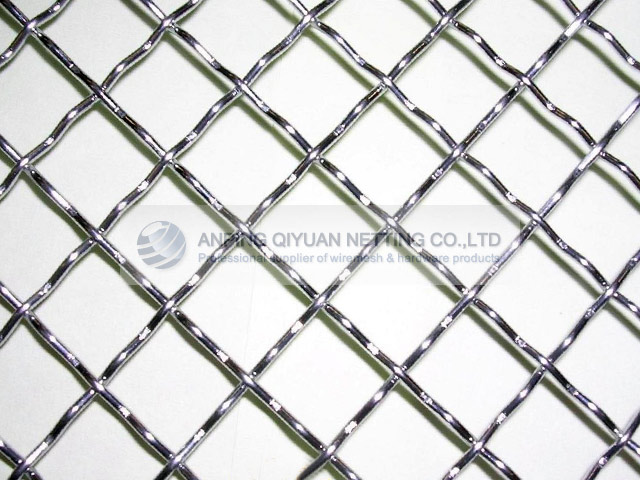

Generally，it’s made of low carbon steel, galvanized steel wire or stainless steel wire. Crimped wire mesh is widely used in industries,where sieving is prevalent. The screens are generally employed in series in order to generate and separate the finest of particles of chemicals, fertilizers and pharmaceuticals.
specification
| Material: |
M.S, G-1, Stainless Steel, Copper, Brass, Carbon steel, etc |
| Weaving and characteristics: |

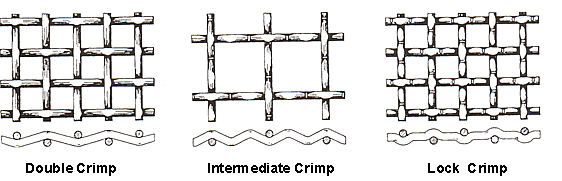

weaving after crimp(double intermediate crimp, lock crimp, flat top crimp, double crimp, inter crimp),sturdy structure.
|
| Product range: |
1" - 1/4" square (In desired width and length) |
| Wire diameter: |
6.00mm - 1.2mm |
| End use: |
Filtering, Sizing, Grading, Separating, Shifting and Domestic use as Grid window, Rack, Lift, Cages, Guards, Trays, Partitions and many other Industrial use |
| Industries we serve: |
Chemical, Pharmaceutical, Fertilizers, Sugar, Cement, Celluloid, and Marine engineering applications |
| Packing: |
with waterproof paper in rolls. Customary packing is available as requested. |
Information
| Wire Diameter (mm) |
Aperture (mm) |
Mesh |
Length (M) |
Weight (Kg) |
| 4.0 |
40.0 |
0.58 |
30 |
142 |
| 4.0 |
30.0 |
0.75 |
30 |
182 |
| 4.0 |
25.0 |
0.87 |
30 |
213 |
| 3.2 |
25.0 |
0.87 |
30 |
141 |
| 3.2 |
20.0 |
1.10 |
30 |
169 |
| 2.6 |
20.0 |
1.12 |
30 |
116 |
| 2.6 |
18.0 |
1.23 |
30 |
127 |
| 2.6 |
15.0 |
1.44 |
30 |
173 |
| 2.0 |
15.0 |
1.49 |
30 |
92 |
| 2.0 |
12.0 |
1.80 |
30 |
110 |
| 2.0 |
10.0 |
2.12 |
30 |
127 |
| 2.0 |
8.00 |
2.54 |
30 |
155 |
| 1.8 |
7.00 |
3.00 |
30 |
149 |
| 1.8 |
6.00 |
3.25 |
30 |
161 |
| 1.6 |
7.00 |
3.00 |
30 |
117 |
| 1.6 |
6.00 |
3.35 |
30 |
131 |
| 1.6 |
5.00 |
3.85 |
30 |
150 |
| 1.6 |
4.00 |
4.50 |
30 |
176 |
| 1.6 |
3.00 |
5.50 |
30 |
215 |
| 1.4 |
6.00 |
3.50 |
30 |
105 |
| 1.4 |
5.00 |
4.00 |
30 |
120 |
| 1.4 |
4.00 |
4.70 |
30 |
140 |
| 1.2 |
8.00 |
2.70 |
30 |
59 |
| 1.2 |
7.00 |
3.10 |
30 |
68 |
| 1.2 |
6.00 |
3.50 |
30 |
77 |
| 1.2 |
5.00 |
4.00 |
30 |
88 |
| 1.2 |
4.00 |
4.90 |
30 |
99 |
| 1.2 |
3.00 |
6.00 |
30 |
132 |
| 1.0 |
6.00 |
3.60 |
30 |
55 |
| 1.0 |
5.00 |
4.25 |
30 |
65 |
| 1.0 |
4.00 |
5.00 |
30 |
76 |
| 1.0 |
3.20 |
6.00 |
30 |
92 |
| 1.0 |
3.00 |
6.35 |
30 |
97 |
| 1.0 |
2.18 |
8.00 |
30 |
122 |
| 0.8 |
2.83 |
7.00 |
30 |
68 |
| 0.8 |
2.38 |
8.00 |
30 |
78 |
| 0.8 |
2.20 |
8.50 |
30 |
83 |
| 0.8 |
2.00 |
9.00 |
30 |
88 |
| 0.8 |
1.75 |
10.0 |
30 |
98 |
| 0.8 |
1.50 |
11.0 |
30 |
108 |
| 0.8 |
1.30 |
12.0 |
30 |
118 |
| 0.7 |
1.40 |
12.0 |
30 |
90 |
| 0.7 |
1.84 |
10.0 |
30 |
75 |
| 0.6 |
1.21 |
14.0 |
30 |
77 |
| 0.6 |
1.52 |
12.0 |
30 |
66 |
| 0.6 |
1.94 |
10.0 |
30 |
55 |
| 0.5 |
1.30 |
14.0 |
30 |
54 |
| 0.5 |
1.09 |
16.0 |
30 |
61 |
| 0.5 |
0.90 |
18.0 |
30 |
69 |
| 0.5 |
0.77 |
20.0 |
30 |
76 |
