Expanded Metal Mesh
Expanded wire mesh is also called pulled plate wire mesh, extend wire mesh .The materials include common carbon plate, stainless steel plate, brass plate, nickel plate, titanium plate. According to the hole, it is divided into diamond, round, square, hex and decorative. Mainly used in filter elements, medicine, paper making, filtering, breeding, wire mesh for battery, wire mend for satellite aerial, machine protecting, handicraft making and window screen substitute.

specification

Material: Common carbon expanded, stainless steel plate, brass plate, nickel plate, titanium plate, iron plate.
Variety: Slotted, diamond, square, hexagonal, circular, architectural patterns, etc.
Finishes: Anodized, painted, plated, and powder coated.
Cost Effective: Cost savings alternative to perforated metal.

Information

Expanded Metal Mesh

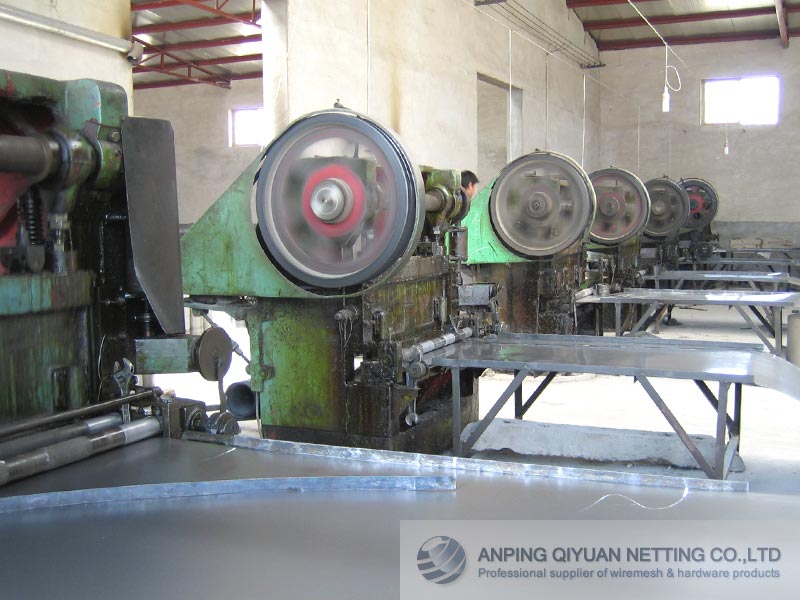

车间实景
Expanded Metal Grating is identified by weight per square foot. Carbon Steel Expanded Metal Grating is available in 3, 3.14, 4, 4.27, 5, 6.25 and 7 pounds per square foot. Aluminum Expanded Metal Grating is available in 2 pounds per square foot and Stainless Steel Expanded Metal Grating is available in 3.3 and 4.5 pounds per square foot.
We feature another Expanded Metal Grating called Projection Mesh. These projections provide an excellent non-slip surface where additional anti-skid surfacing is desired. Projection Mesh Expanded Metal Grating is available in carbon steel in 2 and 3 pounds per square foot and in aluminum a 1 pound per square foot.

Decorative mesh, like standard expanded metal, is a self-contained piece of metal sheet which won't unravel, thus retaining its shape after years of constant use. The same properties making standard expanded metals so applicable to today's needs — lightweight, strength, rigidity, free passage of air, light, heat, sound and adaptability to finishing processes are also present in decorative expanded metals plus functional attractiveness.


The decorative mesh patterns seen here are our most popular styles. Examples of our best-selling mesh types we often keep in stock: 12x6, 16x8, 20x10, 28x10, 28x12, 42x16, 42x20, 51x22, 62x28 and 75x30.

We have over 50 different types of tools for the most popular mesh types, along with a few specialized tools for more particular types.

Ribbon Mesh Patterns

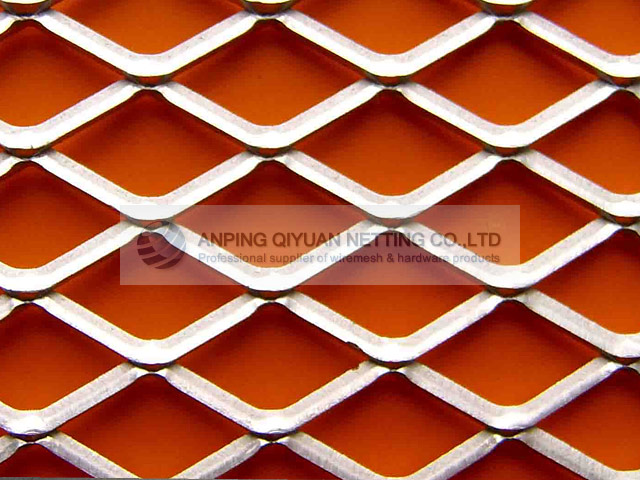

DIAMOND
Expanded Metal Mesh Expanded Metal Mesh Expanded Metal Mesh
ROUND
Expanded Metal Mesh Expanded Metal Mesh Expanded Metal Mesh
SQUARE
Expanded Metal Mesh Expanded Metal Mesh Expanded Metal Mesh
HEX
Expanded Metal Mesh Expanded Metal Mesh Expanded Metal Mesh
DECORATIVE
Expanded Metal Mesh Expanded Metal Mesh Expanded Metal Mesh

Normal specification

mesh thickness(mm) distance short(mm) distance long(mm) strip(mm) width (m) length(m) weight(kg/m2)
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5.00
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26
