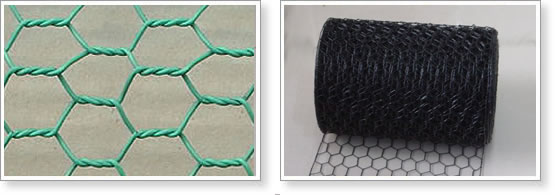

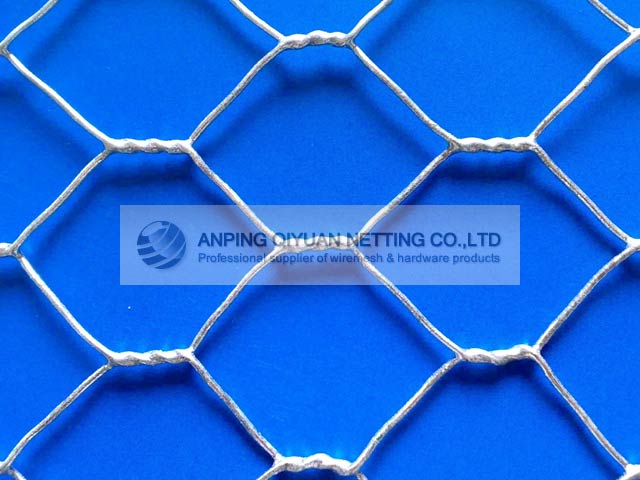

Hexagonal wire mesh (Chicken Mesh/ Rabbit Mesh/ Poultry Wire Mesh) is made of low carbon Iron Wire.The mesh is firm in structure,and has flat surface. It is extensively used in industrial and agricultural constructions as reinforcement and fencing, like Poultry Cage, Fishing, fence for Garden and Children playground, etc.
specification
| Material: | Low carbon steel wire, Electric galvanizing, hot-dip zinc plating, stainless steel or PVC coated. |
| Standard roll length: | 10m to 100m |
| Standard roll width: | 0.5m to 2m |
| Color: | PVC coated hexagonal wire mesh is green, white, grey or other colors; enamelled hexagonal wire mesh is green. |
| Packing: | Normally each roll packed in water proof paper, then Shrink wrapped. Carton package is also available. |
Information
| Galvanized hexagonal wire netting | |||||
| mesh | min. Gal.v. G/SQ.m | Width | Wire Gauge (Diameter) BWG |
||
| Inch | mm | Tolerance(mm) | |||
| 3/8" | 10mm | ±1.0 | 0.7mm ~ 145 | 2' ~ 1m | 27, 26, 25, 24, 23 |
| 1/2" | 13mm | ±1.5 | 0.7mm ~ 95 | 2' ~ 2m | 25, 24, 23, 22, 21 |
| 5/8" | 16mm | ±2.0 | 0.7mm ~ 70 | 2' ~ 2m | 27, 26, 25, 24, 23, 22 |
| 3/4" | 20mm | ±3.0 | 0.7mm ~ 55 | 2' ~ 2m | 25, 24, 23, 22, 21, 20, 19 |
| 1" | 25mm | ±3.0 | 0.9mm ~ 55 | 1' ~ 2m | 25, 24, 23, 22, 21, 20, 19, 18 |
| 1 ~ 1/4" | 31mm | ±4.0 | 0.9mm ~ 40 | 1' ~ 2m | 23, 22, 21, 20, 19, 18 |
| 1 ~ 1/2" | 40mm | ±5.0 | 1.0mm ~ 45 | 1' ~ 2m | 23, 22, 21, 20, 19, 18 |
| 2" | 50mm | ±6.0 | 1.2mm ~ 40 | 1' ~ 2m | 23, 22, 21, 20, 19, 18 |
| 2 ~ 1/2" | 65mm | ±7.0 | 1.0mm ~ 30 | 1' ~ 2m | 21, 20, 19, 18 |
| 3" | 75mm | ±8.0 | 1.4mm ~ 30 | 2' ~ 2m | 20, 19, 18, 17 |
| 4" | 100mm | ±8.0 | 1.6mm ~ 30 | 2' ~ 2m | 19, 18, 17, 16 |
Note:
1.) The above tolerance comply with standard EN10223 ~ 2:1997;
2.) minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.
| PVC Coated Hexagonal Wire Netting | |||
| mesh | Wire Gauge (mm) | Width | |
| Inch | mm | ~ | ~ |
| 1/2" | 13mm | 0.6mm ~ 1.0mm | 2' ~ 2m |
| 3/4" | 19mm | 0.6mm ~ 1.0mm | 2' ~ 2m |
| 1" | 25mm | 0.7mm ~ 1.3mm | 1' ~ 2m |
| 1 ~ 1/4" | 30mm | 0.85mm ~ 1.3mm | 1' ~ 2m |
| 1 ~ 1/2" | 40mm | 0.85mm ~ 1.4mm | 1' ~ 2m |
| 2" | 50mm | 1.0mm ~ 1.4mm | 1' ~ 2m |
| We also offer other specifications you need | |||
