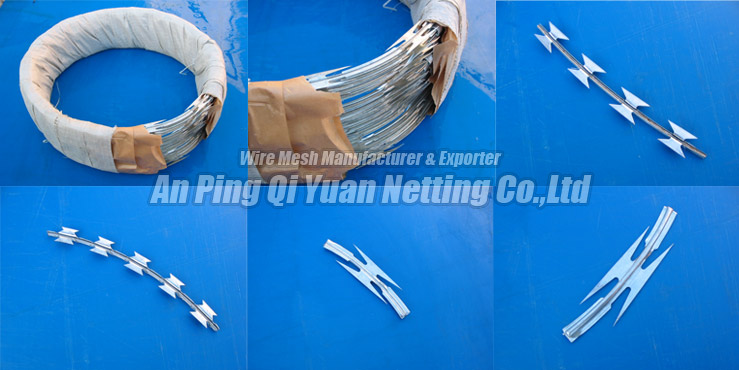

Razor Barbed Wire
Mainly used in the safety and protection of highway and railway, bridges on both sides; in the security of airport, ports and quay; in the protection of municipal construction like   parks, lawns, zoo, pool Lake, roads, and the residential segregation; in the decoration and protection of hotels, grogshops, supermarkets and entertainment. Processing can be customized according to customer's requirements.

Specification

Material: Galvanized blade and wire, stainless steel blade and wire.
Loop Outside Diameter: 450mm to 960mm
No. of Loops: 33 to 55
Standard Length per Coil: 8m to 17m

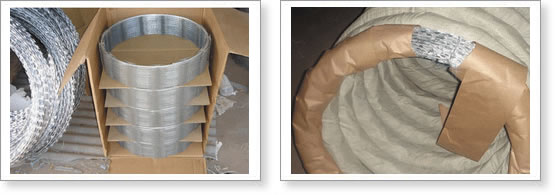

Packing: With waterproof paper and woven cloth in rolls. Different coil diameters or coil weights are available at customers' request.

Information

When you need to get serious about security, Razor Wire is the answer. It is relatively inexpensive, but viciously effective. Razor Wire around the perimeter is enough to deter any would be vandal, robber or saboteur. Razor Wire is made from a corrosion resistant galvanized steel cutting ribbon wrapped around a core of galvanized spring steel wire. It's impossible to cut without highly specialized tools, and even then it's a slow, dangerous job. Razor Wire is a long lasting and very effective barrier technology, known and trusted by security professionals.

Razor Barbed Wire



Razor Blade Specification

Reference
Number
Blade Style Thickness Wire Dia Barb
Length
Barb
Width
Barb
spacing
BTO-10 Blade Style 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 Blade Style 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 Blade Style 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 Blade Style 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 Blade Style 0.5±0.05 2.5±0.1 28±1 15±1 34±1
BTO-30 Blade Style 0.5±0.05 2.5±0.1 30±1 18±1 34±1
CBT-60 Blade Style 0.6±0.05 2.5±0.1 60±2 32±1 96±2
CBT-65 Blade Style 0.6±0.05 2.5±0.1 65±2 21±1 100±2

Barbed Tape Wire Specification

Loop Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 8M CBT-60.65 Single coil
500mm 41 10M CBT-60.65 Single coil
700mm 41 10M CBT-60.65 Single coil
960mm 53 13M CBT-60.65 Single coil
450mm 112 17m BTO-12.15.20.22 Cross type
500mm 102 16M BTO-12.15.20.22 Cross type
600mm 86 14M BTO-12.15.20.22 Cross type
700mm 72 12M BTO-12.15.20.22 Cross type
800mm 64 10M BTO-12.15.20.22 Cross type
960mm 52 9M BTO-12.15.20.22 Cross type

Notes: Standard products styles are shown in the tables above, special specifications are available on request. Standard materials are either galvanized or stainless steel.
