Steel Bar Welded Wire Mesh

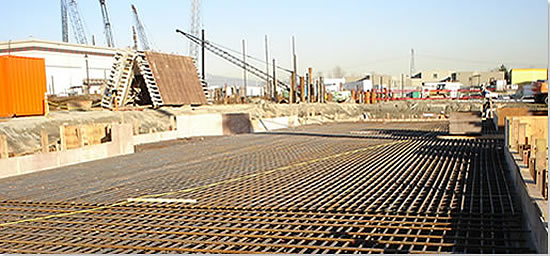

Steel Bar Welded Wire Mesh Panel is made of superior quality steel bar, with flat even surface, firm structure.  This process technology is one of the ten new construction technoloty in 2005. It is widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, wall,etc.



specification

Material: Heated crimped round, electro galvanized round, heated crimped with rib, electro crimped with ribs
Process: welding
Opening: 75mm ~ 300mm
Length: 1m ~ 14m
Width: 1m ~ 3m
With coating: 5mm ~ 16mm
Packing: naked

Information

Steel Bar Welded Wire Mesh

Features of reinforcing mesh
The unique deformed wire pattern (curry pattern) offers superior bonding, improved stress distribution and crack-width control
Ferro-Fabric is available in a wide range of diameters and apertures. The products can be bent to shape as required
Manufactured from hard drawn wire (smooth) and cold rolled wire (deformed)
All intersections are resistant-welded thereby not reducing the tensile strength of the wires
Mesh has an average shear strength equal to 80% of the wire strength
The wire used has physical properties which are rigidly controlled to produce mesh with maximum weld strength combined with ductility
The steel specifications allow for cold rolled wire with a minimum ultimate tensile strength of 510Mpa and a high resistance to fatigue
Mesh is available in black (pre-galvanised) and galvanised sheets or rolls
Also available on request: plastic coated and hot dipped (galvanised) mesh
Quality Control
Reinforcing mesh is produced to highest quality standards and complies to ISO 9002. Thorough testing of wire strength, welds and aperture sizes is continuously performed at all stages of the manufacturing process. Final inspections ensure that highest standards are maintained.
Standard Sizes
Reinforcing mesh is available in rolls (60m x 2,4m) and sheets (6m x 2,4m), manufactured according to standard sizes. Wire diameters vary from 3,55mm to 12mm. Mesh aperture can be as small as 100mm x 100mm.
Special Mesh
Specialised machinery is used to produce weldmesh with non-standard aperture sizes. The spacing of wires in either direction is variable between 25mm and 150mm. Customised mesh is available on request according to specifications provided.
the Reinforcing Mesh Data Sheet
Standard sizes of welded mesh fabric
Specifications: Sheets: 6m x 2,4m or Rolls: 60m x 2,4m
Based on SABS 1024/2006 specifications for welded steel fabric for concrete reinforcement


  SHEETS ONLY SHEET OR ROLLS
MR Reference number 888 746 617 500 395 311 245 193 100 156 200
Mesh Size Nominal
Pitch of
Wires
Main(mm) 200 200 200 200 200 200 200 200 200 100 100
Cross(mm) 200 200 200 200 200 200 200 200 200 100 100
Wire Sizes Main(mm) 12 11 10 9 8 7,1 6,3 5,6 4,0 3,55 4,0
Cross(mm) 12 11 10 9 8 7,1 6,3 5,6 4,0 3,55 4,0
Cross Sectional Area
Per Meter Width
Main(mm2) 566 475 393 318 251 198 156 123 63 99 126
Cross(mm2) 566 475 393 318 251 198 156 123 63 99 126
Nominal Mass/m2 kg 8,88 7,46 6,17 5,00 3,95 3,11 2,45 1,93 1,00 1,56 2,00
  SQUARE GUNITE
  SHEETS ONLY SHEETS OR ROLLS
MR Reference number 1085 943 772 655 517 433 341 289 278 226 133
Mesh Size Nominal
Pitch of
Wires
Main(mm) 100 100 100 100 100 100 100 100 100 100 100
Cross(mm) 200 200 200 200 200 200 200 200 300 300 300
Wire Sizes Main(mm) 12 11 10 9 8 7,1 6,3 5,6 6,3 5,6 4,0
Cross(mm) 8 8 7,1 7,1 6,3 6,3 5,6 5,6 4,0 4,0 4,0
Cross Sectional Area
Per Meter Width
Main(mm2) 1131 951 786 636 503 396 312 246 312 246 126
Cross(mm2) 251 251 198 198 156 156 123 123 42 42 42
Nominal Mass/m2 kg 10,85 9,43 7,72 6,55 5,17 4,33 3,41 2,89 2,78 2,26 1,33
  STRUCTURAL LONGITUDINAL
The MR Reference Number is the nominal mass in kilograms per square meter multiplied by 100.
The sizes given above are standard and are the most generally used. We can, however, manufacture mesh to other specifications,
both in size of wires and spacing.
Hard drawn wire to British standards 4482 has a minimum breaking strength of 510MPa and a minimum yield point of 485MPa.
Full size section of wires

Design specifications for special mesh, Mass at various spacing kg/m2

Wire Size Mass(Kg/m) Spacing of wires(mm) Wire Size
50 75 100 125 150 175 200 225 250 275 300
12 0,888 17,76 11,84 8,88 7,10 5,92 5,07 4,44 3,94 3,55 3,23 2,96 12
11 0,746 14,92 9,95 7,46 5,97 4,97 4,26 3,73 3,32 2,98 2,71 2,49 11
10 0,617 12,33 8,23 6,17 4,94 4,11 3,53 3,09 2,74 2,46 2,24 2,06 10
9 0,499 9,99 6,66 4,99 3,99 3,33 2,85 2,50 2,22 2,00 1,81 1,66 9
8 0,395 7,90 5,26 3,95 3,16 2,63 2,26 1,97 1,75 1,58 1,44 1,32 8
7,1 0,311 6,22 4,14 3,11 2,49 2,07 1,78 1,55 1,38 1,24 1,13 1,04 7,1
6,3 0,245 4,90 3,27 2,45 1,96 1,63 1,40 1,22 1,09 0,98 0,89 0,82 6,3
5,6 0,193 3,87 2,58 1,93 1,55 1,29 1,11 0,97 0,86 0,78 0,71 0,64 5,6
4,0 0,099 1,98 1,32 0,99 0,79 0,66 0,57 0,50 0,44 0,40 0,36 0,33 4,0

Cross sectional areas at various spacing mm2 per meter
Area at various spacing
