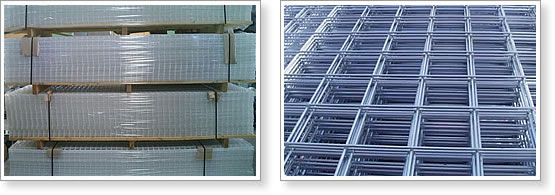

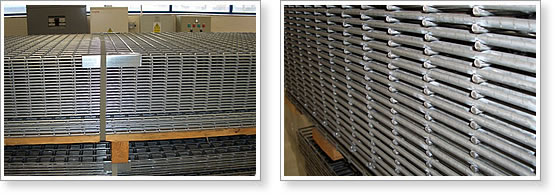

Welded Wire Mesh Panel is made of superior quality steel wire, with flat even surface, firm structure, be using high quality Iron Rod as raw material.With top powder coating, after galvanization, the welded panel can resist the corrosive very strongly.
specification
| Material: | low carbon steel wire, Al-Mg alloy wire |
| Process: | weaving and welding |
| Opening: | 75mm x 150mm |
| Length and Width: | 2400mm x 6000mm(or more) |
| PVC coating thickness: | 0.5mm ~ 1.0mm |
| With coating: | 4.8mm |
| Support post: | diameter 48mm x 2mm x 2200mm |
| Base for fence: | 500mm x 300mm x 300mm |
| Packing: | naked or on pallets |
Information
Welded Wire Mesh Panel is made of superior quality steel wire,with flat even surface, firm structure, be used extensively in building, food, agriculture and so on.
Assortments available:
Welded Stainless Steel Wire Mesh Panels
Galvanized Welded Mesh Panels
Hot-dip Zinc Plating Welded Mesh Panels
Property: corrosion resistance, aging resistance.
Forms of corrosion resistance include electric galvanizing, hot-dipp galvanizing, PVC spraying and PVC coating.
Normal specification
| Wire Diameter | Aperture | Width | |
| inch | mm | ||
| 2.0mm ~ 3.2mm | 1" | 25.40 | 0.914m ~ 1.83m |
| 2.0mm ~ 4.5mm | 2" | 50.80 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 3" | 70.20 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 4" | 101.6 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 5" | 127.0 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 6" | 152.4 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 7" | 177.8 | 0.914m ~ 2.75m |
| 2.0mm ~ 6.0mm | 8" | 203.2 | 0.914m ~ 2.75m |
