Weld Wire Mesh
Electric Welded Wire Mesh Processed automatically by the high-quality iron wire, the advanced welding craft is welded vertically and horizontally respectively at every intersect. After electro galvanized, hot dipped galvanized,  or pvc coated, the finished product is smooth, flat with sturdy structure, excellent anti-corrosion resistance. It can be mainly used in industry, agriculture, breeding, building, transportation, mine, etc, like poultry  field, lawn, machine protection, egg basket, shelf, fruit juice filtering, guardrail, etc.

specification

Material: Galvanized Iron, Stainless Steel, Plastic-Coated Iron
Standard length per roll : 30m
Standard width per roll: 0.5m to 1.8m
Packing: Welded mesh is wrapped in waterproof paper in rolls. Then in cartons or in pallet.

Information

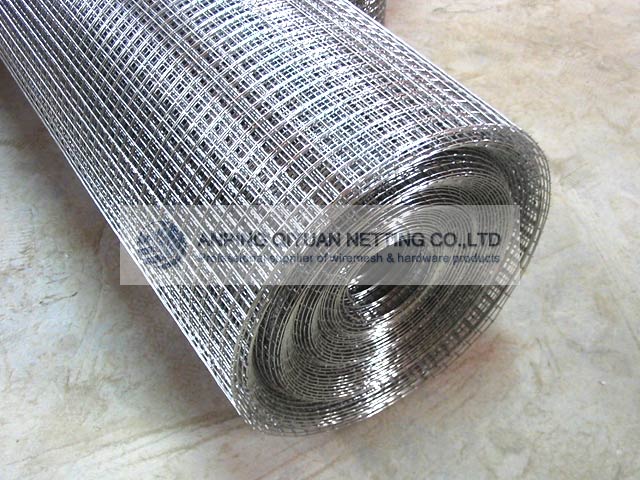

Electro Galvanized Welded Wire Mesh

Electro Galvanized Welded Wire Mesh

E.G Welded wire mesh enjoys the feature of corrosion resistance compared with plain welded wire mesh. Mainly used as fencing panels,wire container panels, wire baskets, welded wire fences, poultry fences and other welded products.

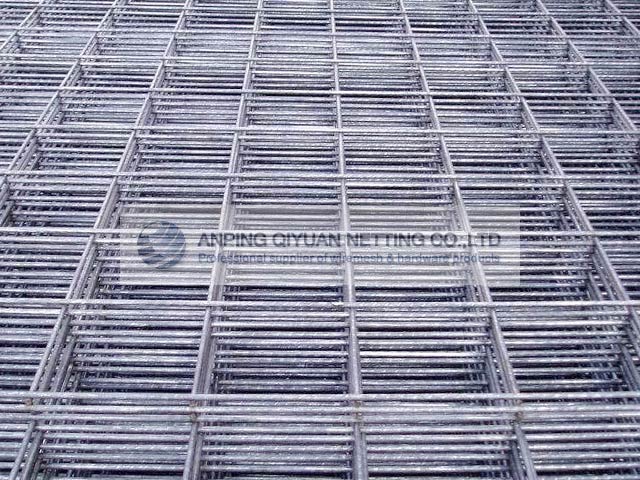

Hot-dipped Zinc Coated Welded Wire Mesh

Hot-dipped Zinc Coated Welded Wire Mesh

Hot dipped zinc coated welded wire mesh is made in accordance to English Standard normally in regard to the production and zinc coating. The finished welded mesh offer flat and uniform surface, firm structure, good integrity. It offers the most excellent anti-corrosion resistance among all the steel wire mesh products.

Features and Application:with its excellent anti-corrosion property,it is very popular in breeding industry:  for animal cages or fences; and widely used in mine sieving industries as sieving screen. The zinc coating offers a kind of decorative outlook with its flat surface.

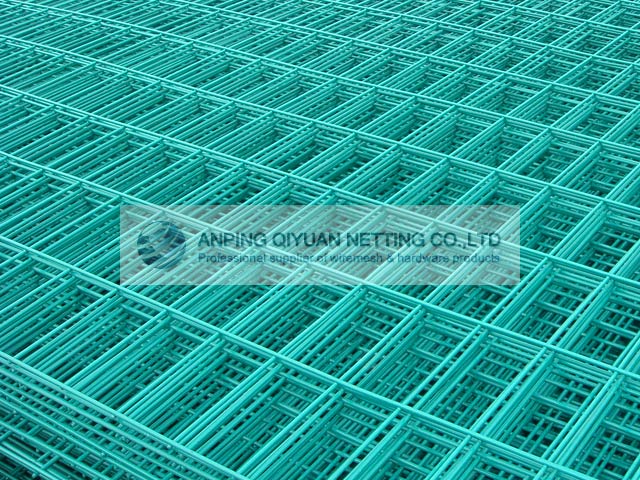

PVC Coated Welded Mesh

PVC Coated Welded Mesh

It is made of high-quality  galvanized iron wire, then coated with PVC powder by advanced automatic equipments. The plastic coating layer is strong adhesive,and has bright luster with good anti-corrosive prosperity. Colors can be green, black, white, etc. Other color can be coated acording to customers' special requirement.

Application:Suitable for fencing houses and properties, companies, gardens recreation areas, parks,etc.




PVC Coated Welded Mesh

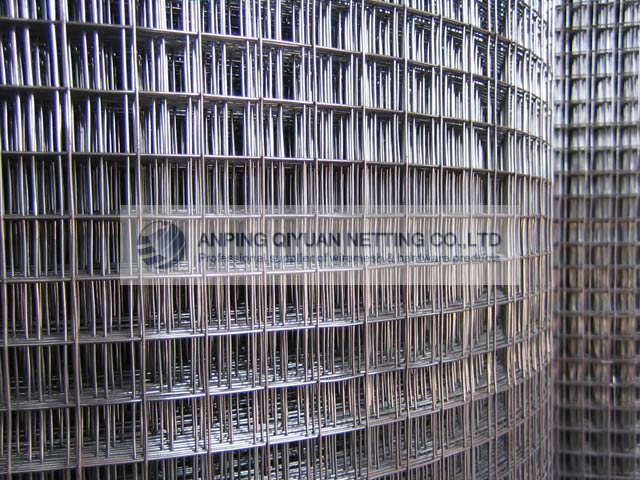

Welded Stainless Steel Mesh

Stainless steel welded wire mesh offers better strength, integration and longevity compared with other wire mesh products. Materials: Stainless steel 302, 304, etc.

Applications: Transport; Entertainment Facilities; Civil Use: as security & isolation fencing for pedestrians’ pavement, transport center and other public places; Agriculture and Forestry: Fencing for goats, horse fencing and fencing for farms and livestock; Earth Surface Stability: Fabricated into containers, suitable for support of earth surface stability; Mine Exploitation; Industry & General Use: For machine protection, cage for equipment, support for cable and pipe, cover for fans and ventilation devices, etc.

Normal specification

Specification List of Welded Wire Mesh
Opening Wire Diameter(BWG)
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16

Galvanized Fencing Mesh
Opening Wire Diameter(BWG)
In inch In metric unit(mm)
2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm
3" x 3" 75mm x 75mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mm x 100mm 2.11mm,2.5mm
4" x 4" 100mm x 100mm 2.0mm,2.5mm

PVC Coated Welded Mesh
Opening Wire Diameter(BWG)
In inch In metric unit(mm)
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21
3/4" x 3/4" 19mm x 19mm 16,17,18,19,20,21
1" x 1" 25.4mm x 25.4mm 15,16,17,18,19,20
