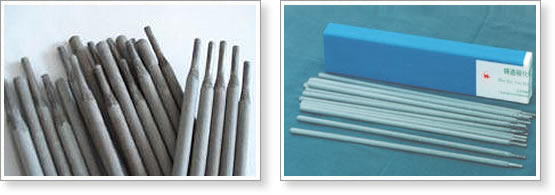

Welding Electrode, Carbon Steel Electrode is carbon steel electrode with lime titania coating.And it has excellent jointing craftwork capability, excellent handle craftwork, electric arc steady, weld path beauty, less splash and AC/DC. It could be used for jointing important low carbon steel sructure and low strength low alloy steel,etc.
Welding metal chemic component（%）
| Test item | C | Mn | Si | S | P |
| Guarantee | - | - | - | ≦0.035 | ≧0.040 |
| Common result | 0.11 | 0.32～0.55 | 0.30 | 0.025 | 0.030 |
Welding metal machine capability
| Test item | High-point intension (mpa) |
Tensile strength (mpa) |
Elongation (%) |
AKV dish out (j) | |
| 0℃ | -20℃ | ||||
| Guarantee | 420(43) | 330(34) | ≧22 | ≧27 | ≧47 |
| Common result | 44 ~ 55 | (34) | 22 ~ 32 | 70—115 | |
X-radial request : II grade jointing electric current
| Welding rod diameter(mm) | 2.0 | 2.5 | 3.2 | 4.0 | 5.0 | 5.8 |
| Jointing electric current(A) | 40-70 | 70-90 | 90-130 | 160-210 | 220-270 | 260-360 |
